The fully automatic hydraulic dump truck unloader is suitable for concentrated trucking and high-volume transport, such as coal, ore, grain, oil, feed, cement clinker, and power plants. This centralized unloading system, evolving from manual unloading to mechanized, automated unloading, significantly improves work efficiency. It automatically unloads bulk materials such as ore, clinker, grain, feed, and oils from various warehouses and processing plants. It is also widely applicable to chemical, metallurgical, cement, and all other units and departments handling bulk materials, significantly improving factory production efficiency.
A hydraulic panel flipper is a highly efficient and widely used device. Its operating principle relies primarily on the precise control of a hydraulic system. During operation, an electro-hydraulic control system receives a control signal, which is then transmitted to a hydraulic cylinder. Upon receiving the signal, the fluid within the cylinder generates high pressure, pushing the piston, which in turn drives the panel flipping mechanism to perform the flipping operation. During this process, the panel flipper accurately tilts to the specified angle, achieving the desired flipping function.

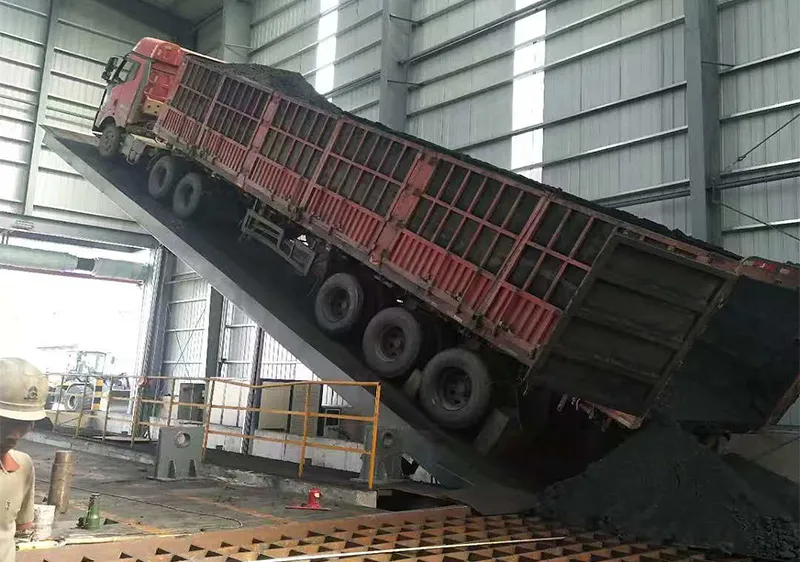

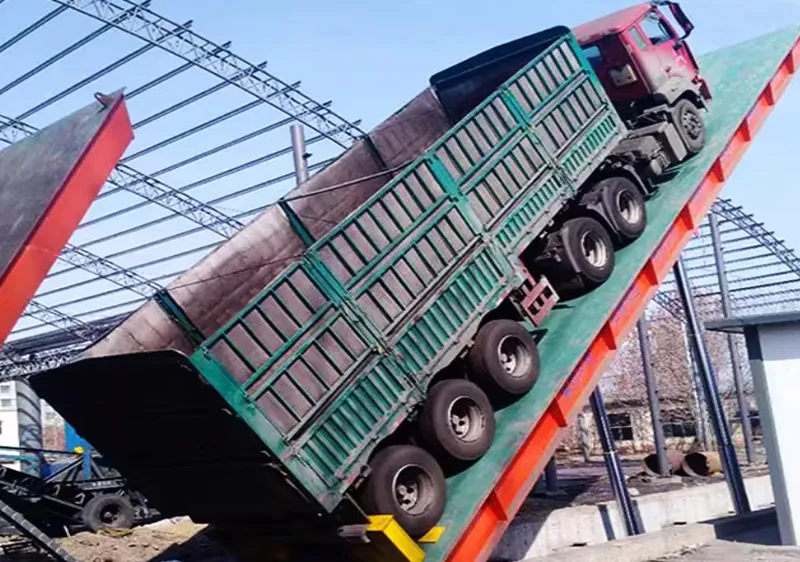

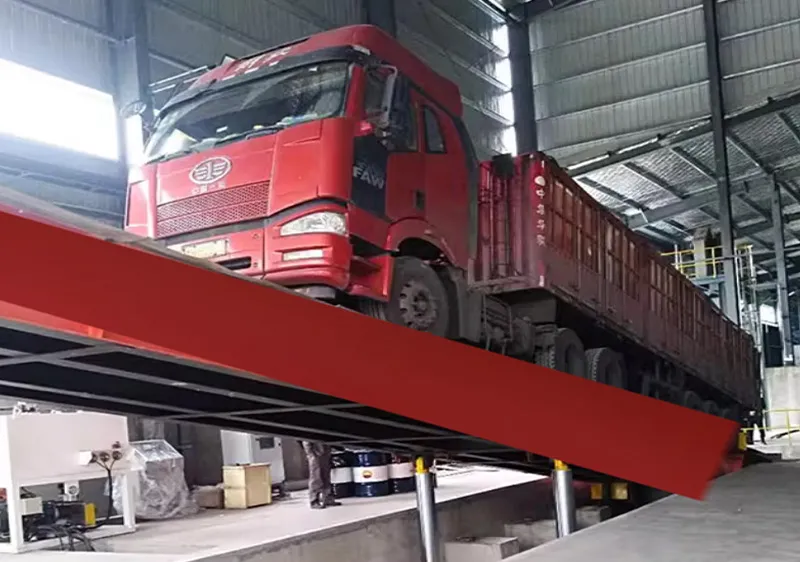

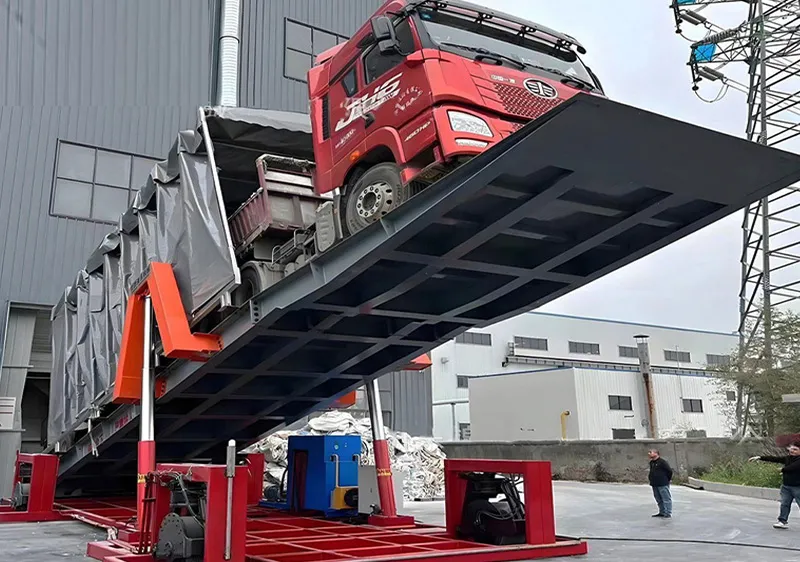

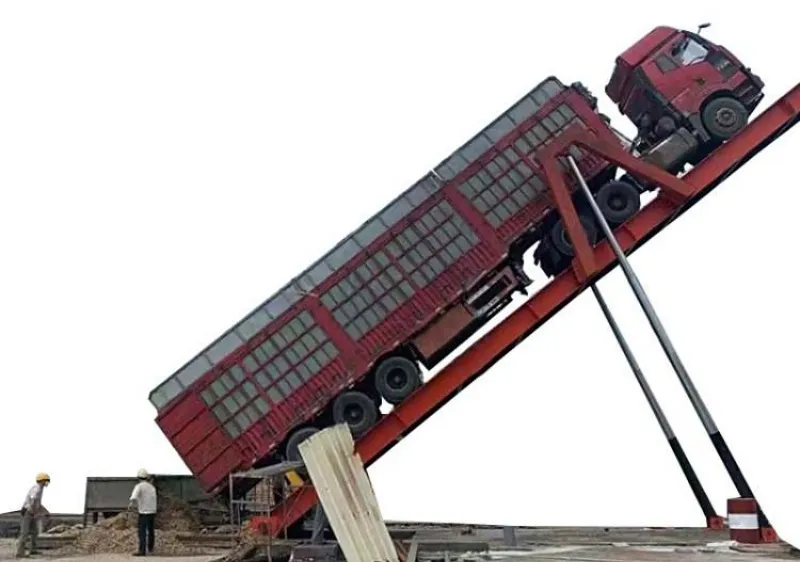

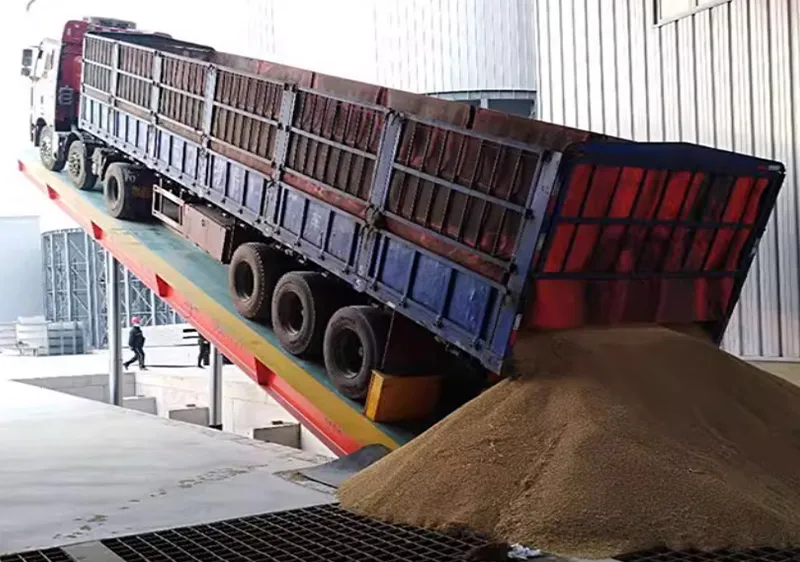

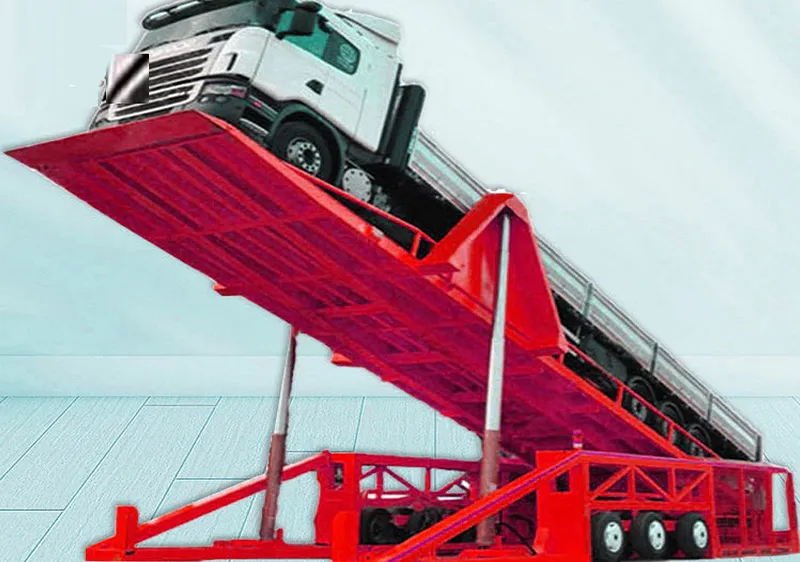

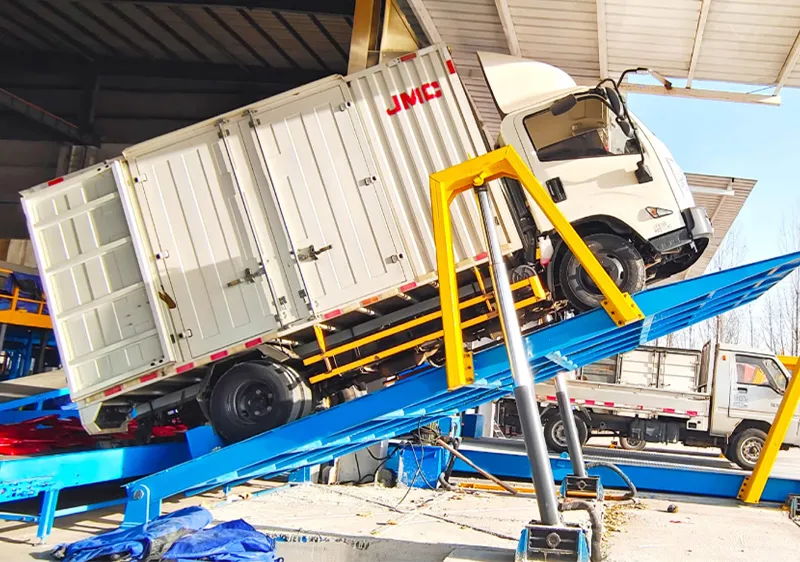

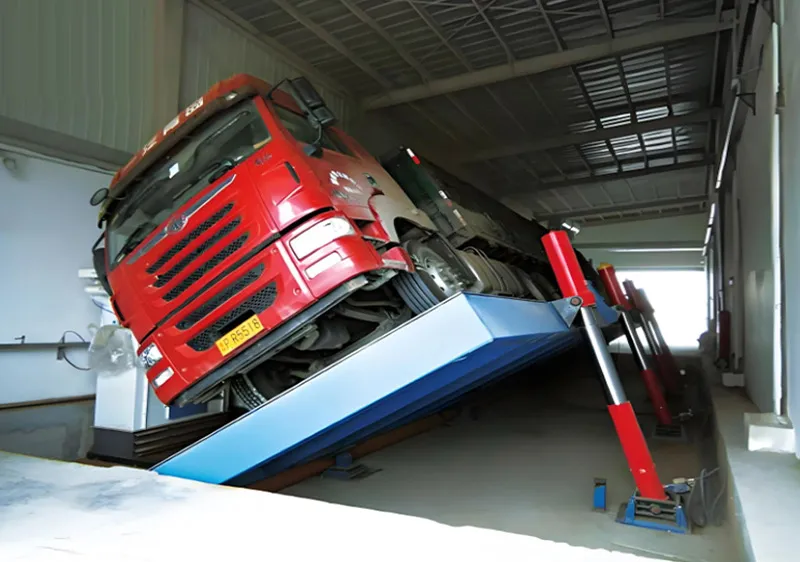

A folding platform unloader consists of a dumping platform, main lift cylinder, hydraulic control system, electrical control system, and wheel chocks. The folding platform unloader operates by following the instructions to position the truck along the guide lines on the folding platform. The locking mechanism is activated, locking the rear wheels and raising the main lift cylinder. The lowering platform tilts to a specific angle, gradually unloading the material inside the vehicle. Controlled by a hydraulic system, it can automatically unload a full load of tens to hundreds of tons in just minutes.
During unloading, the flap unloader falls into place, the wheel stop retracts, and the trolley leaves the unloading platform along the guide rail, completing the entire unloading process. The advantages are minimal human interference and high discharge efficiency.
In an emergency, the hydraulic system can be automatically locked to prevent the tipping unloader from falling suddenly when there is a power outage, a rupture of the hydraulic pipeline, or a failure of the hydraulic system, so as to enable the unloader to move flexibly in the working area and realize the application of one machine with multiple unloading positions.
Product Advantages
1. Easy and fast operation, reliable quality.
2. Reduces labor costs and reduces workload.
3. Reduces environmental pollution.
4. The overall structural design of the equipment is rational, ensuring stable operation and a long service life.
5. High degree of automation, equipped with a variety of control and display instruments.
6. The hinge shaft of the flap platform is made of a special alloy material containing graphite, which ensures extremely flexible operation and requires less frequent maintenance.
7. Wide range of applications, including a wide range of application locations and suitable materials.
The primary function of a hydraulic panel flipper is to significantly improve cargo loading and unloading efficiency. Using hydraulic transmission technology, a hydraulic panel flipper can easily and quickly flip and unload cargo, effectively reducing labor intensity and improving work efficiency. Whether it's containers, pallets, cartons, or lumber, a hydraulic panel flipper can easily handle a variety of loading and unloading needs.
The hydraulic panel tilting machine also features a variety of safety protection measures. Its well-designed control system includes travel limits, safety lockout, and manual replay. In the event of a power outage or misoperation, the device automatically locks, preventing any unintended consequences. These safety protections effectively ensure operator safety and reduce the risk of accidents.
The hydraulic flipper features powerful flipping capabilities. Its high turning torque allows it to easily flip heavy objects, ensuring stability and safety during loading and unloading. Furthermore, the hydraulic flipper's turning angle can be adjusted to suit specific needs, flexibly adapting to the loading and unloading requirements of various cargoes.
Hydraulic platform unloaders offer the following advantages:
High Efficiency: Powered by a hydraulic system, the platform moves quickly and smoothly, significantly reducing unloading time.
Safety: The equipment is equipped with safety features such as an emergency stop button and limit switches to ensure safe operation. It also reduces direct human contact with cargo, minimizing labor risks.
Adaptability: It can accommodate cargo of varying sizes and shapes, offering excellent versatility.
Labor Savings: It reduces the burden of manual handling, improves work efficiency, and reduces labor costs.
Easy Maintenance: The equipment's simple structure makes maintenance easy, ensuring long-term, stable operation.
With the rapid development of the logistics industry, the application of hydraulic flip-plate unloaders is becoming more and more extensive. In the future, with the continuous innovation and upgrading of technology, the performance of hydraulic flip-plate unloaders will be further optimized, providing more powerful support for the development of the logistics industry.
