The three-section mobile loading platform is suitable for forklift, clamping, rental, outdoor operation, and long-distance consignment. It is easy to move and easy to store, and can quickly solve the problem of loading and unloading cabinets. It can be moved, raised, and folded, and the floor space occupied when placed is shortened. One machine has multiple uses, saving time, effort, and labor.

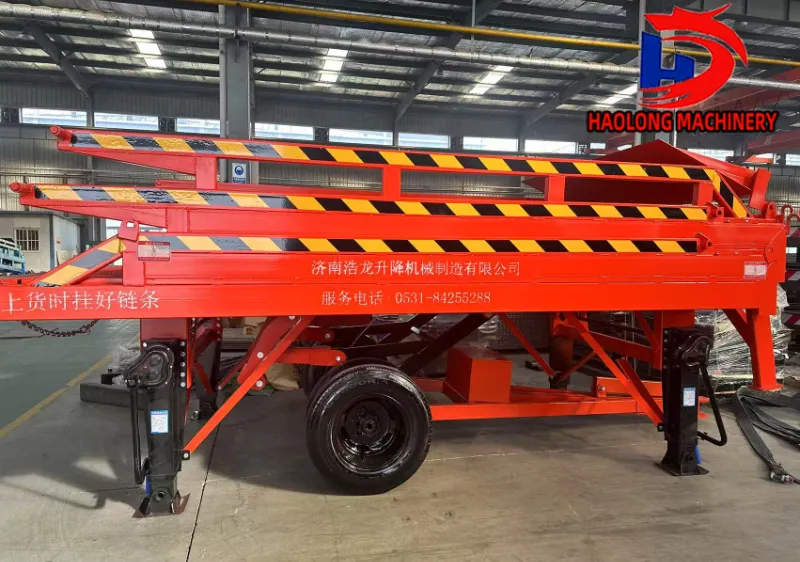

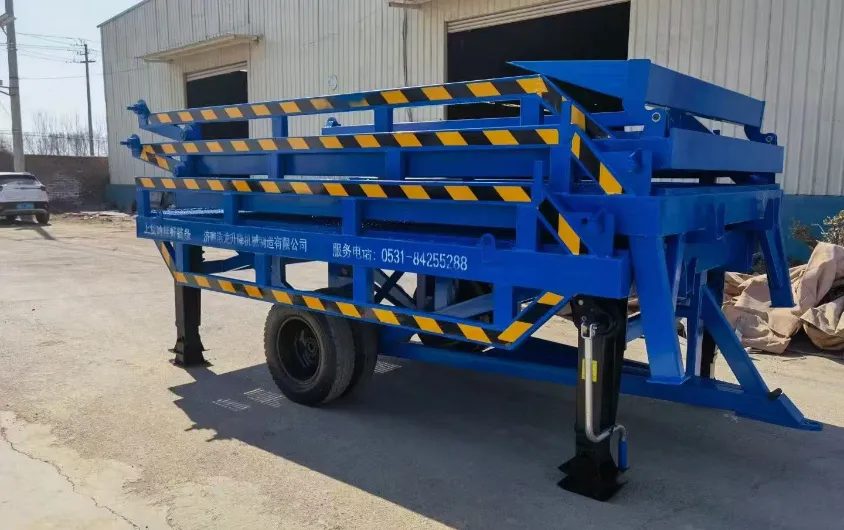

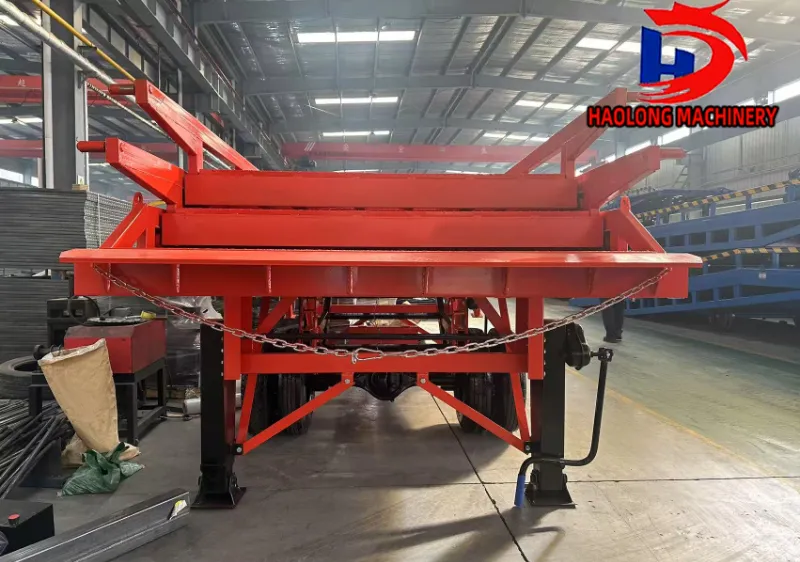

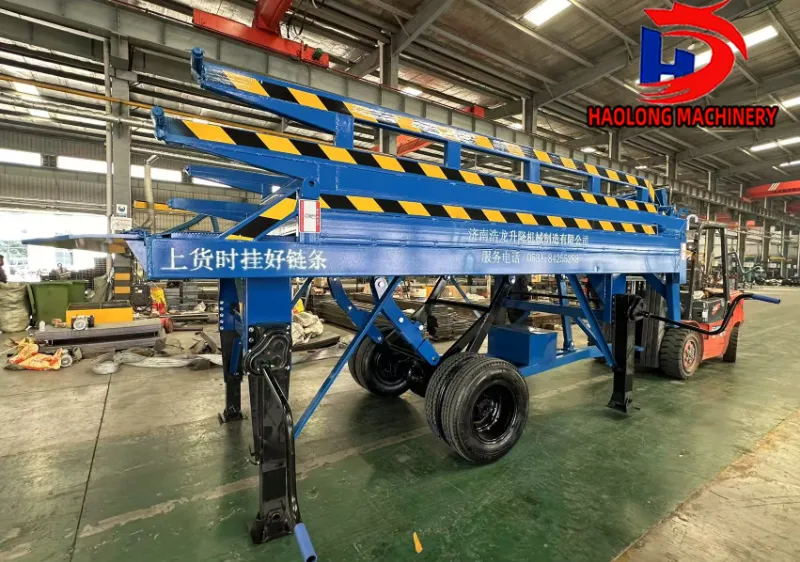

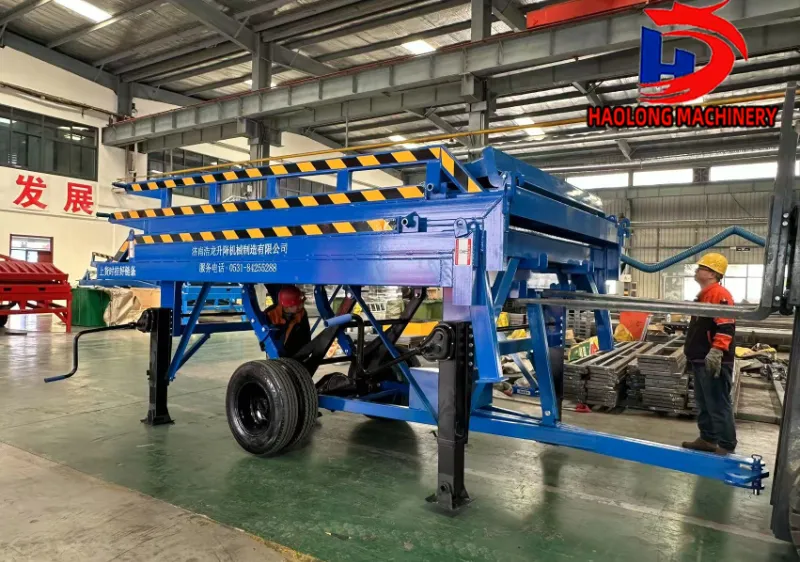

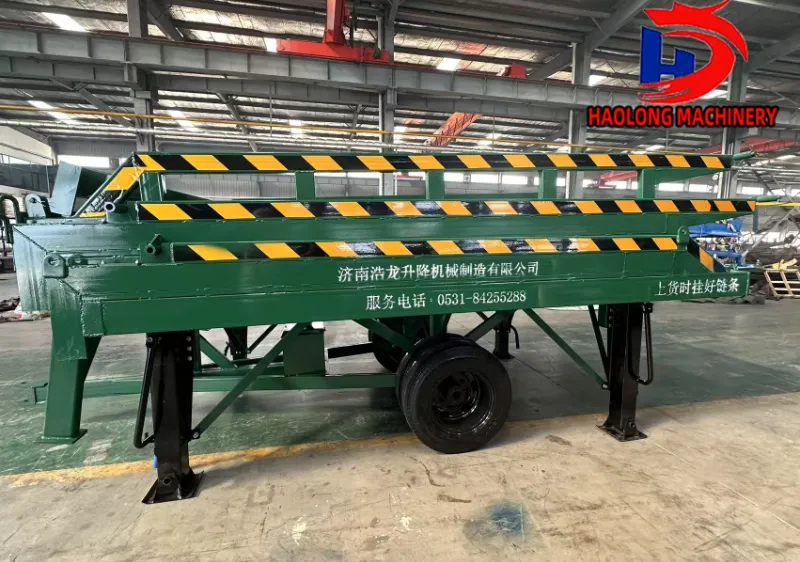

The equipment is composed of three sections. When working, each section is fixed to the buckle by a forklift. The legs can adjust the height of the ramp to adapt to truck compartments of different heights. Compared with the two-section folding ramp, there is no hydraulic system, and the height can only be adjusted by the legs. After adjusting the height, unfold the folded bridge body so that one end of the ramp is connected to the truck compartment, and the other end is firmly supported on the ground, forming a channel connecting the truck compartment and the ground. Forklifts and other handling equipment can directly enter the truck compartment to load and unload goods through the ramp.
Efficient space utilization: It takes up little space after folding, which is convenient for storage and transportation. It is especially suitable for logistics places with limited space such as small warehouses and distribution centers. It can be folded and put away when not in use, saving a lot of space. Compared with the two-section folding type, the three-section folding type has no hydraulic system and the adjustment range (40 cm stroke, so the height of the equipment must be determined.)
According to truck compartments of different heights and actual working conditions, the height can be flexibly adjusted through the outriggers, so that the boarding bridge can be better docked with the truck compartment, which improves the versatility and applicability of the boarding bridge.
The frame structure is reasonably designed, and with components such as reinforcing ribs and hydraulic support rods, it can maintain good stability during cargo loading and unloading, ensuring the safety of forklifts and other equipment on the bridge. At the same time, some loading ramps are also equipped with safety devices such as anti-slip surfaces and safety guardrails, which further reduce the risk of cargo slipping and personal injury.
Usually, only one person is required to complete a series of actions such as moving, docking, lifting and folding the loading ramp. The operation process is simple and fast, which greatly improves the efficiency of cargo loading and unloading.
Application scenarios: Widely used in logistics centers, warehouses, factories, docks, platforms and other places. Where there is a need for cargo loading and unloading and frequent docking with truck compartments of different heights, the three-section folding loading ramp can be used, which can effectively improve loading and unloading efficiency, reduce labor intensity and reduce labor costs.
Solve the loading and unloading problems between vehicles of different heights and warehouse platforms, and improve the efficiency of cargo turnover.
Facilitate the loading and unloading of cargo between containers and the ground.
Cooperate with forklifts to load and unload large quantities of cargods, improving warehousing efficiency.
Multi-stage folding design:

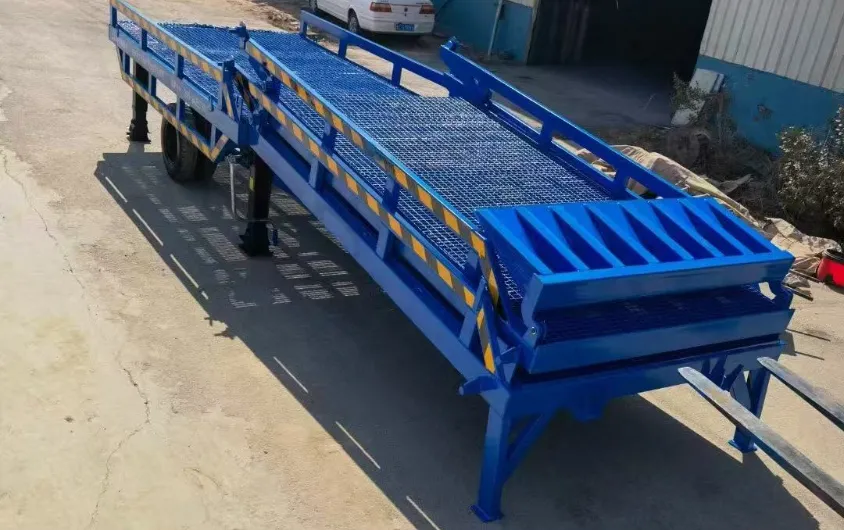

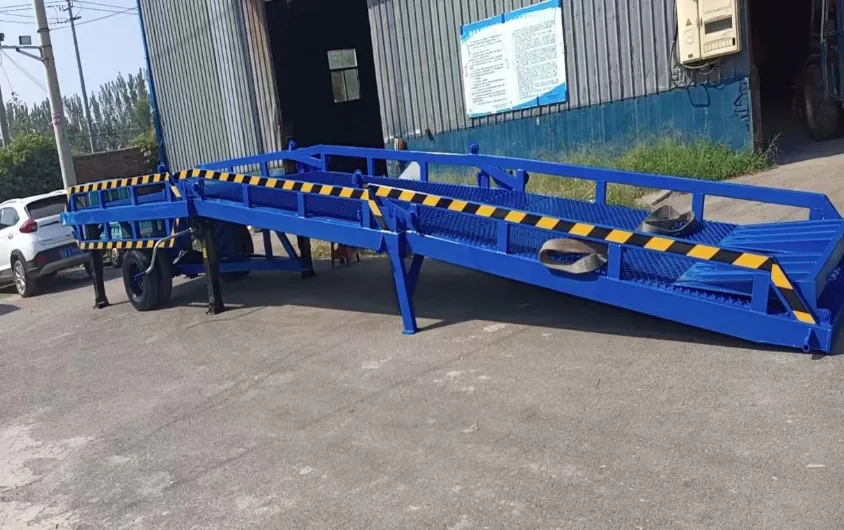

The bridge body consists of three sections: the main bridge, the auxiliary bridge, and the extension bridge. They are connected by high-strength buckles to achieve "three-stage folding". The total length after unfolding can reach 12 meters, which can meet the long-distance overlap between trucks and loading and unloading points; the length after folding is about 4.5 meters, which greatly saves storage space and is convenient for forklifts or short-distance manual transportation.
Outstanding mobility:

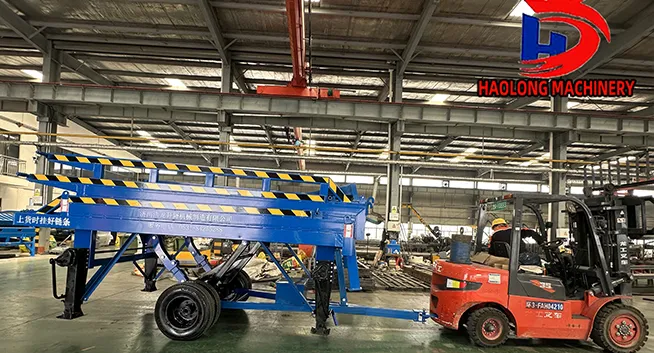

The volume is compact after folding, and the bottom is equipped with large pneumatic tires, which can be pushed by forklifts and can be quickly dispatched between different unloading points without relying on large equipment for transportation.
Safe and stable, reliable load-bearing and anti-slip design:
High-strength load-bearing capacity: The bridge body is welded with Q235 steel, and reinforcement ribs and load-bearing beams are added inside. The single bridge can bear up to 12 tons, which meets the passage needs of forklifts and other heavy equipment, and is suitable for loading and unloading of pallet goods and heavy machinery parts.
The core advantages of the three-section folding mobile loading ramp are that it is extremely compact when folded, has a wide adaptability and longer length when unfolded, and is labor-saving and efficient to operate. While ensuring load-bearing safety, it perfectly balances space saving and operational flexibility, making it the preferred equipment for small and medium-sized venues and multi-scene scheduling.
